Overview

Aurva Data Plane is a component responsible for collecting environment-specific data and forwarding it to the Control Plane for visualization. It is ideally deployed in the same VPC as target databases (for DSPM or DAM) within an AWS Account for easier database connectivity and operations.

Currently, 3 types of deployment mechanism are supported for the Data Plane

1. EC2 ASG with all the components deployed in it

2. EKS Deployment with pods running as part of existing Kubernetes cluster

3. ECS Deployment with containers running as part of the existing ECS

This document specifically focuses on deployment using an EC2 Auto Scaling Group (ASG), detailing the required AWS infrastructure, network connectivity, and step-by-step Infrastructure as Code (IaC) deployment instructions using Terraform.

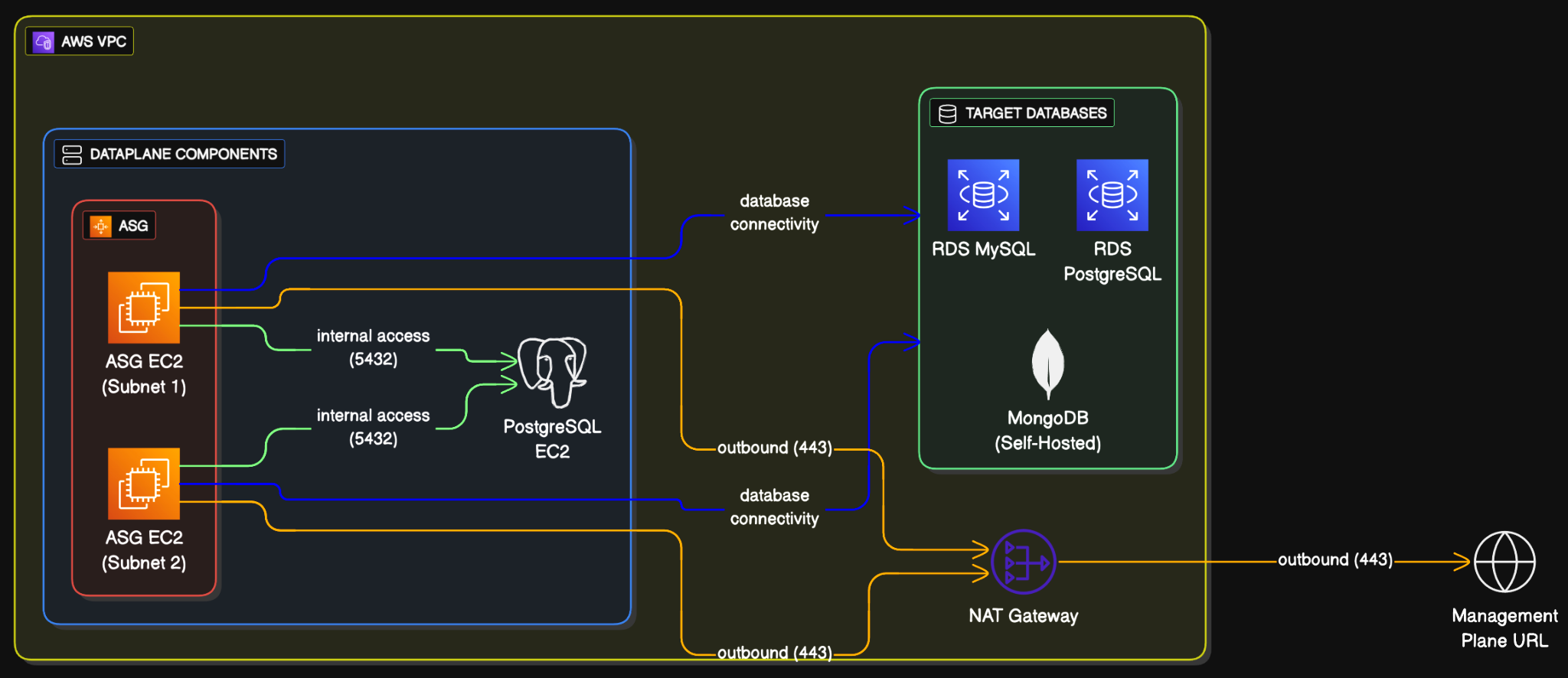

High Level Architecture

The details of the infrastructure and networking as shown in the architecture diagram is discussed in the following sections.

Infrastructure Components

Please note that the infrastructure described below will be provisioned using Infrastructure as Code (IaC) scripts. It is included here for reference purposes only.

Component	Specs
Auto Scaling Group	Resource	Name	Configuration
Auto Scaling Group	aurva-dataplane-asg	Min: 2, Max: 3, Desired: 2 Rolling upgrades
Launch Template	aurva-dataplane-launch-template	Supports Ubuntu (20, 22, 24), Amazon Linux 2023, RHEL (8, 9, 10) AMIs
EC2 Instances	aurva-dataplane-instance	4vCPU, 16GB RAM (c5a.large)
EBS Volume	/dev/xvda	gp3, 50GB
Security Group	aurva-dataplane-sg	Outbound
IP Address	Port
0.0.0.0/0	443
VPC CIDR	5432
No Inbounds
PostgreSQL EC2 Instance	Resource	Name	Configuration
EC2 Instance	aurva-postgresql-instance	2vCPU, 2 GB RAM (t3g.​​small)
EBS Volume	/dev/xvda	gp3, 30GB
PostgreSQL Secret	aurva-postgresql-values	30 days recovery
Security Group	aurva-postgresql-sg	Outbound
IP Address	Port
0.0.0.0/0	443
Inbound
IP Address	Port
VPC CIDR	5432
Secret Manager	aurva-postgresql-values 30 days recovery period Auto-Generated Password
IAM Permissions	Aurva Managed DSPM Read only IAM permissions are required. List can be found here.
Aurva Managed DAM IAM Permissions. List can be found here.
SSM Permission (AmazonSSMManagedInstanceCore) to access the instance using SSM
S3 Bucket (optional, for DAM only)	Retention: 3 days
Encryption: Server Side Encryption (SSE-3)
Publically Accessible: Blocked
Bucket Policy: Access restricted to data plane IAM role only
Terraform Backend resources	S3 Bucket: aurva-terraform-state-{ACCOUNT_ID}
DynamoDB Table: aurva-terraform-locks
State file: Encrypted, versioned

Networking Overview This section applies only to environments where a proxy or firewall controls outbound traffic. In such cases, the listed subdomains must be explicitly whitelisted to allow outbound connectivity.

The following outbound subdomains must be reachable from the Data Plane ASG VPC.

Subdomain	Port	Purpose
Control Plane URL: command.aurva.io (for production) command.uat.aurva.io (for PoC) For PaaS, It is going to be the company’s internal subdomain. Ask your DevOps team to provide the details.	443	Control Plane URL to connect Data Plane to Control Plane
Aurva’s deployment resources resources.deployment.aurva.io	443	To download deployment scripts and associated resources
Aurva’s private registry registry.aurva.io	443	To download application images
AWS APIs: sts.<region>. amazonaws.com s3.<region>. amazonaws.com rds.<region>. amazonaws.com dynamodb.<region>. amazonaws.com iam.<region>. amazonaws.com cloudwatch.<region>.amazonaws.com	443	AWS APIs needed to identify the resources and carry out the business logic for DAM and DSPM. For strict egress environments, follow the AWS documentation to add these as private endpoints in order to access them privately. Please note that private endpoints will not be added automatically by Aurva terraform script. The customer needs to add them manually .

Deployment Steps Aurva provides IaC (Infrastructure as Code) to deploy the above-mentioned components.

It is the easiest and recommended way to deploy Aurva and test out its capabilities.

Following tools needs to be present in the local computer in order to deploy:

Tool	Testing Procedure
Terraform	Once downloaded, can be verified by running the following command: terraform version 
AWS CLI	Once downloaded, can be verified by running the following command: AWS --version 
AWS Credentials	AWS Credentials for the AWS Account should be configured on the terminal before proceeding ahead. If not configured, use the following command and fill the SECRET keys AWS configure --profile=PROFILE_NAME  Export the profile # for linux export AWS_PROFILE=PROFILE_NAME # for windows powershell $Env:AWS_PFOFILE=PROFILE_NAME  Run the following command to verify: AWS sts get-caller-identity 

Once the above prerequisites are checked, we can use the following steps:

Step 1: Downloading the terraform script

Download the desired terraform script. Run the following command in sequence.

# create a directory to store the terraform script on local machine

mkdir -p /opt/aurva-deployment && cd /opt/aurva-deployment

run the curl command to download the tar file for the script

curl -O https://resources.deployment.aurva.io/manifests/main/install-dataplane-AWS-vm.tar.gz

extract the script from the tar

tar -xzvf install-dataplane-AWS-vm.tar.gz

remove the tar file

rm install-dataplane-AWS-vm.tar.gz

navigate to the directory

cd /opt/aurva-deployment/install-dataplane-AWS-vm



Step 2: Configuring the environment variables Copy the file contents of terraform.tfvars.tpl to terraform.tfvars

cp terraform.tfvars.tpl terraform.tfvars



Open terraform.tfvars file to make the changes

vi terraform.tfvars

 The variable file is self-explanatory to make the changes. Once changes are made, save the file and exit.

Step 3: Initialize the terraform backend (S3 bucket and a Dynamo DB table)

Linux or MacOS (bash script)

# make the pre-flight script executable

chmod +x preflight.sh

execute the pre-flight script

this will initialise the terraform backend

bash preflight.sh



Windows (Powershell)

# execute the pre-flight script

This will initialise the terraform backend

./preflight.ps1



Step 4: Execute the terraform script

# initialize the terraform

terraform init

plan the infrastructure.

this will tell all the compoents we will be creating.

verify it before moving ahead

terraform plan

execute the terraform

terraform apply



The deployment execution will take close to 5-10 minutes.

Deployment Verification

Once the deployment is completed, we can verify the deployment in the following 3 basic steps:

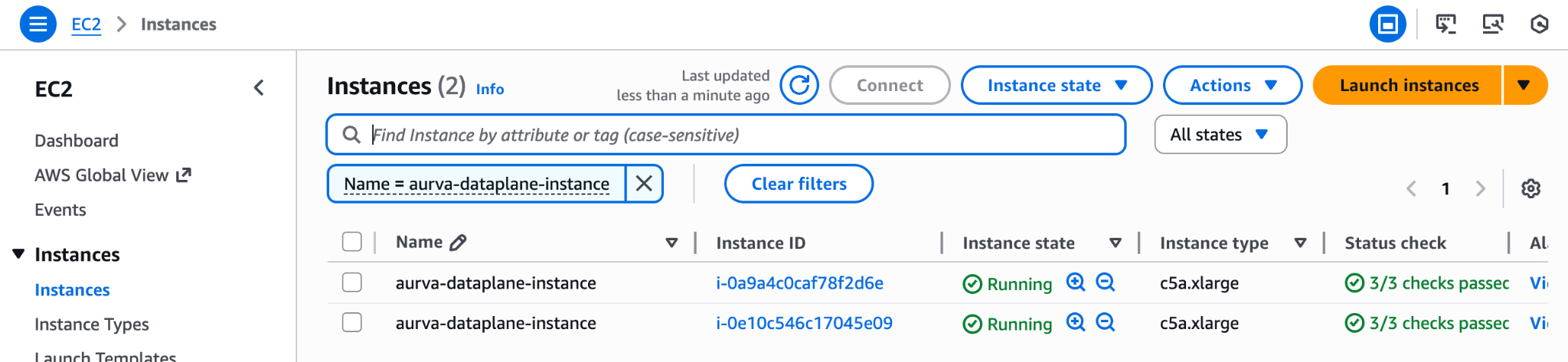

Step 1: Get Instance ID of any one of data plane instance

If the instance comes to the running state, find out the Instance ID of the data plane instance by visiting the EC2 page.

Step 2: SSH into the instance

SSH either by using AWS SSM CLI, website or SSH into the machine

for SSM using CLI, run the following command from your local machine (NOTE: requires AWS credentials to be configured with permission to start ssm session)

# start the session

AWS ssm start-session --target <INSTANCE_ID>

get sudo access

sudo su

check if docker containers are up and running (usually takes 3-5 minutes after instance start)

docker ps

logs container ids and the name of the container

check logs of one of the services

docker logs <CONTAINER_ID>



If you are able to see the containers, it means that the container images are pulled and invoked.

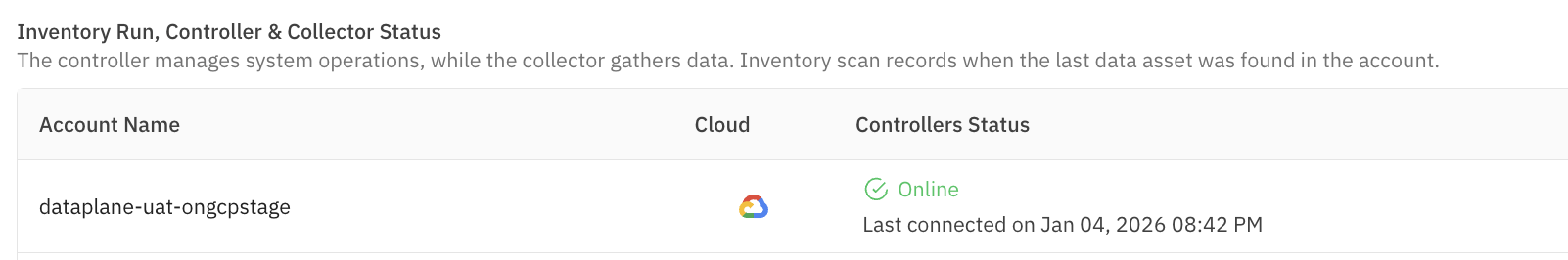

Step 3: Check Aurva dashboard System Health page

System Health page should show Aurva Controller (identified as data plane name filled in the terraform variable file) is in Online state.
