Data Plane on AWS EKS

Overview

The Aurva Data Plane runs inside your environment and is responsible for collecting telemetry — discovery, classification, query activity, and posture data — from your AWS account, then forwarding it to the Aurva Control Plane for analysis and visualization.

This guide covers Data Plane deployment on an existing Amazon EKS cluster, including infrastructure prerequisites, networking requirements, and the high-level deployment workflow.

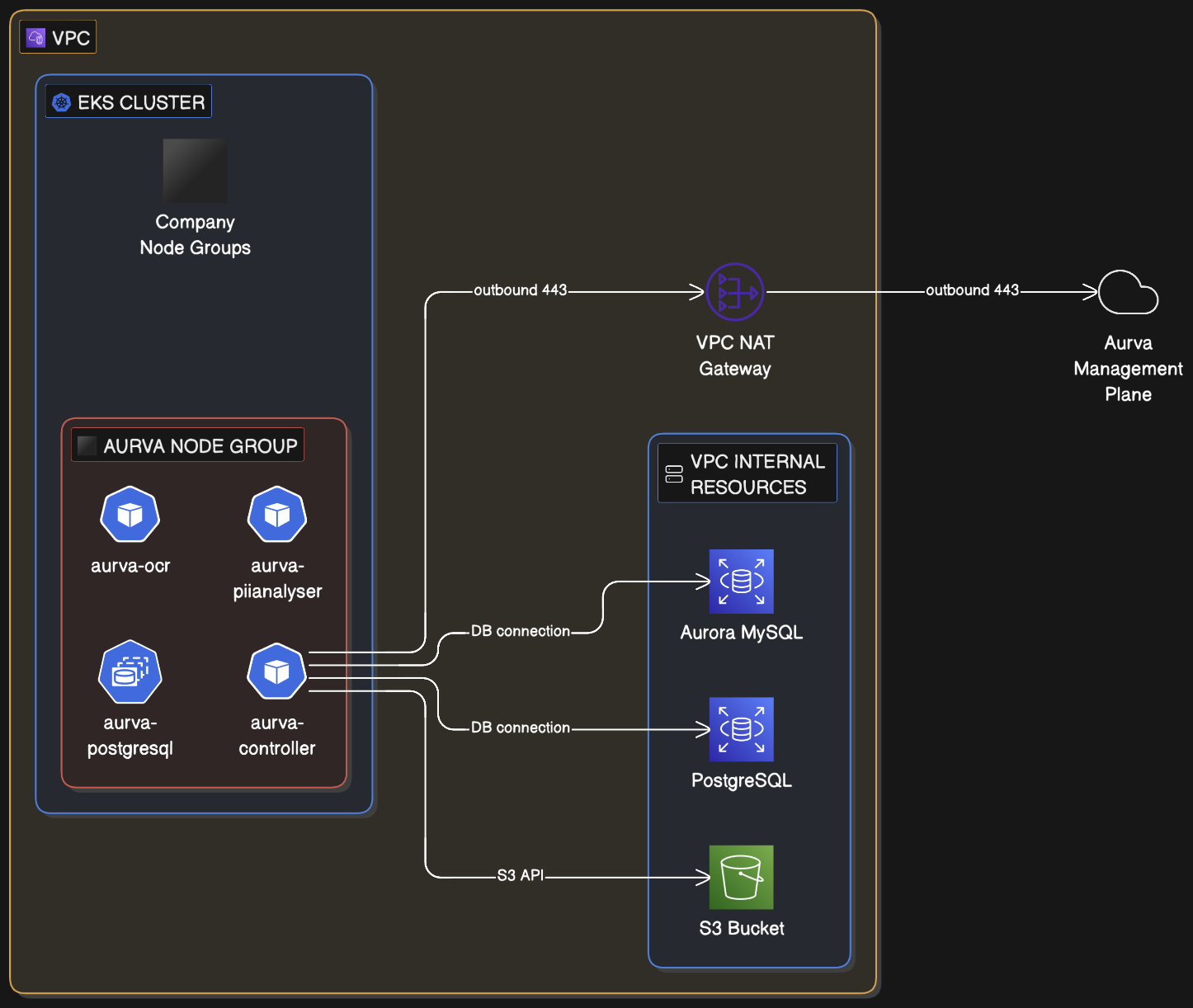

High Level Architecture

Data Plane on AWS EKS architecture

Infrastructure Components

The customer must provision the following infrastructure before installing the Data Plane:

Compute

Component	Requirement
Node group	A dedicated node group is recommended (an existing one can be reused)
Architecture	x86_64
Node OS	Amazon EKS-Optimized Linux
Instance size	`c5a.xlarge` (4 vCPU, 8 GB RAM) — minimum
Storage	50 GB minimum
Node count	Production: minimum 2; scale out as needed. PoC: 1 is acceptable.

Storage

Resource	Configuration
S3 bucket	Retention 3 days; SSE-3 server-side encryption; public access blocked; bucket policy restricts access to the Data Plane IAM role
Terraform backend	S3 bucket plus DynamoDB lock table for state

IAM

The Aurva-provided Terraform module provisions the read-only IAM permissions required by the Data Plane. See AWS IAM Permissions for the Data Plane for the full policy document.

Pod Specifications

Aurva deploys the following workloads into the EKS cluster (production sizing):

Pod	Type	Replicas	Memory	CPU	Product
`controller`	Deployment	min 1, max 5	req 500 MiB / lim 1024 MiB	req 500 m / lim 1000 m	All (DAM, Data Flow, DSPM)
`pii-analyser`	Deployment	min 1, max 3	req 2 GiB / lim 4 GiB	req 1000 m / lim 2000 m	All
`ocr`	Deployment	min 1, max 1	req 1 GiB / lim 1 GiB	req 1000 m / lim 1000 m	DSPM
`postgresql`	StatefulSet	1	req 200 m / lim 500 m	req 500 MiB / lim 500 MiB	All
`ebpf-agent`	DaemonSet	One per node	req 300 MiB / lim 600 MiB	req 300 m / lim 600 m	Data Flow

Networking Prerequisites

The following outbound connectivity must be permitted from the EKS node group:

Destination	Port	Purpose
Control Plane URL (`command.aurva.io` for production, `command.uat.aurva.io` for PoC)	443	Data Plane → Control Plane communication
`resources.deployment.aurva.io`	443	Download deployment scripts and resources
`registry.aurva.io`	443	Pull Aurva container images
Target databases	Native database ports	Required for discovery, classification, and DAM

Deployment Workflow

The deployment is split into two phases:

Infrastructure provisioning — provision the IAM role, S3 bucket, DynamoDB table, and any additional networking via the Aurva-provided Terraform module.
Application installation — install the Aurva workloads into the cluster using the bundled Helm charts.

Detailed step-by-step Terraform and Helm commands for this deployment are provided in the customer-specific runbook delivered by Aurva support during onboarding. Contact Aurva support if you need an updated copy.

Verification

Once installation completes:

Confirm the controller pod is Running and ready:
```
kubectl -n aurva get pods
```
Tail the controller logs to verify the Data Plane has registered with the Control Plane:
```
kubectl -n aurva logs deployment/controller -f
```
In the Aurva console, navigate to Settings → Monitoring Configuration. The new Data Plane should appear and be marked Healthy within a few minutes.

Next Steps

Onboard your first asset via Onboarding a Data Asset Manually.
Enable DAM for that asset via Monitoring Configuration.
Review AWS IAM Permissions for the Data Plane to confirm the IAM role has been provisioned with the required actions.
