Inter-Service Networking in Kubernetes
Service-to-service networking map for Aurva components running in Kubernetes.

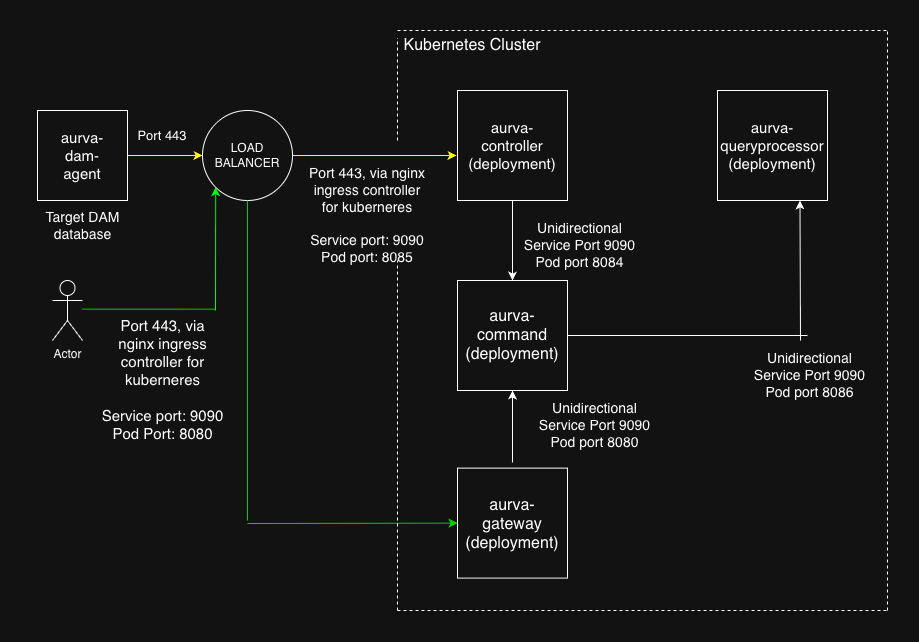

Inter-Service Networking Map
Note: Only the service having active network calls among them are shown here.
Route Table
| Source | Destination Service / Namespace / Port | Destination Deployment / Namespace / Port | Flow |
|---|---|---|---|
| Load Balancer | aurva-controller / aurva-dataplane / 9090 | aurva-controller / aurva-dataplane / 8085 | Unidirectional |
| Load Balancer | aurva-gateway / aurva-control plane / 9090 | aurva-gateway / aurva-control plane / 8080 | Unidirectional |
| aurva-controller | aurva-command / aurva-control plane / 9090 | aurva-command / aurva-control plane / 8084 | Unidirectional |
| aurva-gateway | aurva-command / aurva-control plane / 9090 | aurva-command / aurva-control plane / 8084 | Unidirectional |
| aurva-command | aurva-queryprocessor / aurva-control plane / 9090 | aurva-queryprocessor / aurva-control plane / 8086 | Unidirectional |
